- Made from large thickness C40 steel. - Scratch resistant powder coating. - Bowl with reinforced edge and AISI 304 S/S shaft. - Forged spiral tool. - Lid with opening to add ingredients during operation. - High efficiency ventilated motor with oil-bath gear box. - Thermal overload protection circuit breaker. - Reinforced chain drive. - Low voltage IP67 protection rated controls. - This mixers are suitable for all kinds of pizza doughs. - Liftable head for tank removal and easy clearing. - Removable container. Optionals: - Wheels and timer. The bowl capacity and machine functionality are based on 60% or higher hydrated dough
Share:
This product appears in:
Watch the video
Product details
- Model: HERCULES 20 TA 2V
- Power: watt 750-1100
Hp 1-1,5 - Power source: 1ph/3ph
- Tank revolutions rpm: 1V= 10
2V= 20 - Spiral revolutions rpm: 1V= 85
2V= 170 - Tank dimensions: mm ø360x210
- Tank capaciry: lt 21
- Dought capacity: kg 17

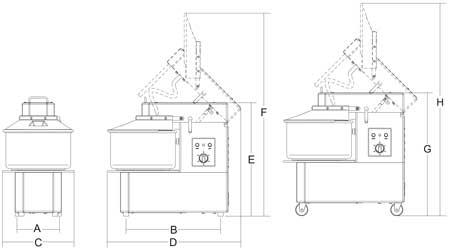

- A: mm 230
- B: mm 530
- C: mm 400
- D: mm 751
- E: mm 635
- F: mm 1125
- G: mm 715
- H: mm 1205
- Net weight: kg 88
- Shipping: mm 530x830x1020
- Gross weight: kg 98
- HS-CODE: 84388099
